Triple Glazed Roof Windows Manufacturer
Triple Glazed Roof Windows Manufacturer
The Ultimate Fusion of Natural Warmth & Engineering Excellence. Discover our upgraded Aluminum Clad Wood Center Pivot Windows featuring ultra-efficient 5mm LOW-E + 16mm + 5mm + 0.76 PVB + 5mm triple glazing and revolutionary 180° rotation technology designed for Passive House standards.

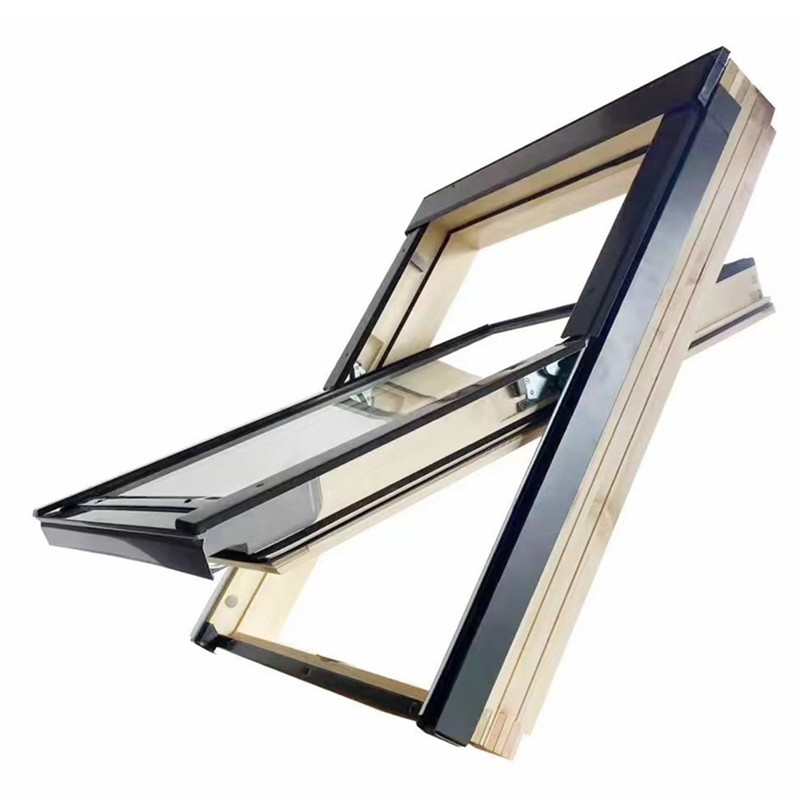

Contact Us NowAluminum Clad Wood Center Pivot Window
The premier solution for architects and homeowners seeking center-pivot roof windows that flawlessly balance exceptional thermal efficiency, massive natural daylighting, and effortless maintenance.
Supreme Design Meets Advanced Glazing
As an industry-leading triple glazed roof windows manufacturer, AUROLUX has engineered a skylight that refuses to compromise. We combine the organic warmth and natural insulating properties of premium Scandinavian pine on the interior with the impenetrable durability of a powder-coated seamless aluminum shield on the exterior.
Our upgraded series is meticulously designed to deliver unmatched energy savings. By utilizing a thick, triple-pane laminated glass configuration, these windows drastically reduce thermal bridging, preventing winter heat loss and minimizing summer solar gain.
- Advanced Triple Glazing: Upgraded 5mm LOW-E + 16mm (Argon) + 5mm + 0.76 PVB + 5mm laminated configuration for supreme thermal and acoustic insulation.
- 180° Rotation Technology: The central friction hinges allow the sash to rotate a full 180 degrees, enabling safe, ladder-free exterior glass cleaning from inside the room.
- Background Ventilation: An innovative multi-point micro-switch locking system allows for continuous fresh air circulation while the window remains securely locked.
- Premium Core Materials: Constructed from Grade-A finger-jointed pine wood and encased in a heavy-duty 1.8mm seamless welded aluminum weather shell.
Core Innovation & Architectural Features
Engineered to exceed modern building regulations, delivering lifelong durability and uncompromising structural integrity.
Advanced Triple Glazing System
Upgraded to a robust 5mm LOW-E + 16mm + 5mm + 0.76 PVB + 5mm insulated glass unit (IGU). The strategic integration of Low-E metallic coatings, Argon gas filling, and triple-pane construction reduces overall heat loss by up to 40% compared to standard double glazing.
Revolutionary 180° Rotation
The heavy-duty central friction hinges are engineered so the sash can rotate a full 180 degrees. A built-in sliding barrel bolt locks the window in the inverted position, allowing for incredibly safe and easy cleaning of the exterior pane without dangerous ladder work.
Ergonomic & Secure Ventilation
Equipped with a highly durable, ergonomic metal handle positioned at the bottom for effortless manual operation. It features a multi-point micro-switch locking system that ensures the window is burglar-proof, even when left slightly ajar for background ventilation.
Smart Automation Integration
Fully compatible with our range of smart home upgrades. Integrate concealed electric motors (featuring double-layer stainless steel chains), automated rain sensors, and remote-controlled honeycomb blinds to transform your skylight into an intelligent climate-control asset.
Comprehensive Technical Specifications
Detailed performance metrics, U-values, and standard dimensions engineered for precise architectural planning.
| Technical Details & Performance Metrics | |
|---|---|
| Opening Style | Center Pivot (Featuring Revolutionary 180° Inward Rotation) |
| Roof Pitch Compatibility | Strictly designed for pitched roofs with an inclination between 15° and 90° |
| Frame Composition | 6063-T5 Structural Aluminum Cladding + Impregnated Natural Pine Heartwood |
| Glass Specification | 5mm LOW-E + 16mm (Argon) + 5mm + 0.76 PVB + 5mm Triple Glazed Laminated |
| Thermal U-Value | Approx. 1.0 - 1.2 W/(m²·K) ensuring ultra-low thermal transmittance |
| Acoustic Performance | High-decibel noise reduction due to the thick PVB laminated interlayer |
| Sealing Technology | Triple-layered EPDM Rubber Gaskets + Seamless Welded Aluminum Flashing |
| Control Mechanism | Manual Bottom Handle / Smart Electric Chain Actuator (Optional) |
| Model Name | Skylight Size (W x H mm) | Opening / Hole (mm) |
|---|---|---|
| Standard | 600 x 800 | 620 x 820 |
| Standard | 780 x 780 | 800 x 800 |
| Model A4 | 780 x 980 | 800 x 1000 |
| Model A6 | 780 x 1180 | 800 x 1200 |
| Model A8 | 780 x 1400 | 800 x 1420 |
| Model B6 | 1140 x 1180 | 1160 x 1200 |
| Model B8 | 1140 x 1400 | 1160 x 1420 |
| Electric Chain Motor Options (Add-on) | |
|---|---|
| Material | Double-layer Stainless Steel Chain |
| Max Force | 400N (Industrial Push/Pull capability) |
| Life Cycle | 10,000+ Continuous Operations Tested |
| Certifications | Fully CE, RoHS Compliant for safety |
Frequently Asked Questions
Clear, technical answers to help specifiers and homeowners make informed decisions.
What makes triple glazing superior to standard double glazing?
Triple glazing adds an extra pane of glass and a second argon-filled cavity to the window unit. In our specific configuration (5mm LOW-E + 16mm + 5mm + 0.76 PVB + 5mm), this drastically lowers the U-value, meaning significantly less heat escapes your home during winter. The addition of the PVB laminated layer also provides unparalleled acoustic dampening, making it ideal for homes in noisy urban areas or regions with heavy rainfall.
Why combine aluminum and wood instead of using UPVC?
Aluminum-clad wood windows offer the ultimate architectural compromise. The interior Grade-A pine wood provides excellent natural thermal insulation and a beautiful, warm aesthetic that UPVC cannot replicate. The exterior aluminum cladding provides a rigid, weather-proof, zero-maintenance shield that protects the wood from UV rays and moisture, ensuring the window lasts for decades without rotting or warping.
How does the background ventilation feature work?
Our center-pivot windows are designed with a specialized two-step locking catch. By engaging the handle into the secondary micro-switch position, the window remains structurally locked and secure against intruders, but leaves a small gap at the seals. This allows for continuous passive airflow, reducing interior humidity and preventing condensation without compromising building security.
Partner With a Leading Triple Glazed Roof Windows Manufacturer
Elevate your residential or commercial architectural projects with unparalleled energy efficiency, premium craftsmanship, and highly competitive direct-from-manufacturer pricing.
Contact Us Today
